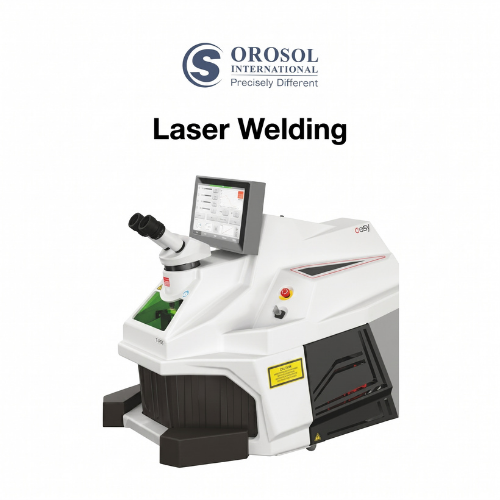

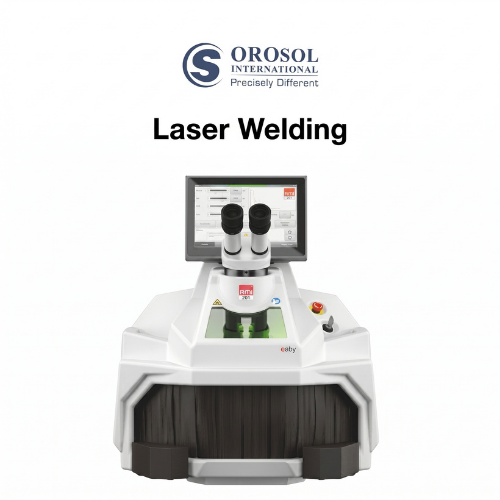

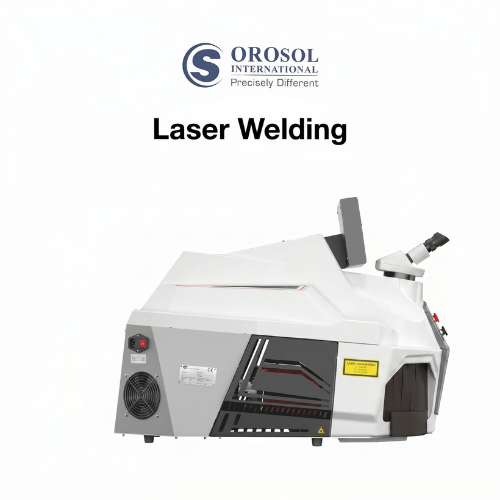

Laser Welding

Model: EASY-1 / EASY-2 / EASY-3 / EASY-3 “PLUS” Specification: Laser Source: Nd:YAG (All Models) Wavelength: 1064 nm (All Models) Average Power: 95 W (EASY-1) / 100 W (EASY-2) / 110 W (EASY-3) / 140 W (EASY-3 PLUS) Peak Power: 7.5 kW (EASY-1) / 9.0 kW (EASY-2) / 10 kW (EASY-3 / EASY-3 PLUS) Max Energy: 150 Joule (EASY-1) / 180 Joule (EASY-2) / 200 Joule (EASY-3 / EASY-3 PLUS) Pulse Frequency: Up to 30 Hz (EASY-1 / EASY-2 / EASY-3) / Up to 50 Hz (EASY-3 PLUS) Pulse Duration: 0.1–20 ms (EASY-1 / EASY-2 / EASY-3) / 0.1–25 ms (EASY-3 PLUS) Spot Dimension: 0.2 – 2.0 mm (0.1 mm optional) – All Models External Control: 10" Color Touchscreen (All Models) Max Working Temperature: 39°C (All Models) Power Requirements: 1-Phase, 220/230 VAC, 50/60 Hz, 10A (EASY-1 / EASY-2 / EASY-3) / 1-Phase, 220/230 VAC, 50/60 Hz, 16A (EASY-3 PLUS) Cooling System: Forced Air & Double Radiator, 6 L (All Models) Machine Size (W × D × H): 59 × 92 × 65 cm (All Models) Net Weight: 49 kg (EASY-1 / EASY-2 / EASY-3) / 52 kg (EASY-3 PLUS)
